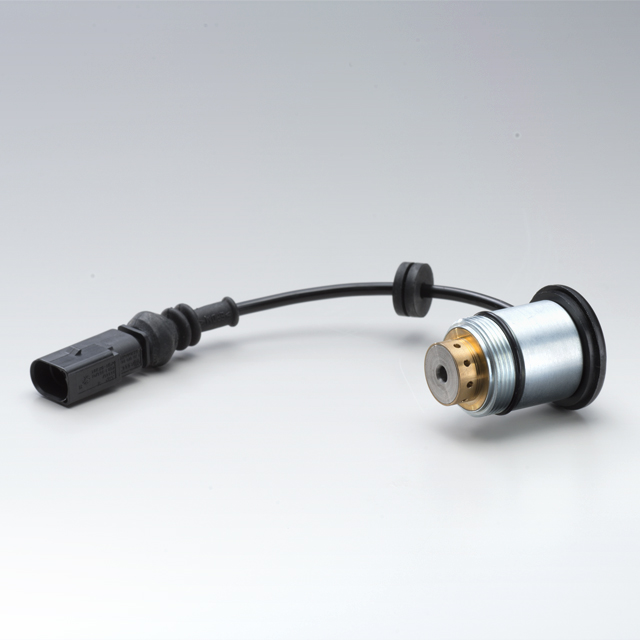

These solenoid valves perform continuous variable control of the damping force of shock absorbers in order to provide both driving stability and riding comfort.
They achieve the optimum control of the shock absorber damping force for each wheel in units of several milliseconds using the driving speed, steering wheel turning angle, acceleration/deceleration, and road surface conditions as input parameters.
In the event of electrical system abnormality resulting in variable control failure, the fail safe mechanism maintains the normal damping force.
With this system onboard, the driver can enjoy a high level of maneuverability while feeling excellent riding comfort.
| Temperature | -40 to 120ºC |
| Flow rate | 0 to 40 L/min |
| Pressure | 0 to 20 MPa |
| Rated voltage | 12 V |
| Current range | 0 to 1.6 A |
| Operation endurance | 10^7 cycles |
| Vibration resistance (random vibration) | RMS 10 G in all three directions |
