These solenoid valves are lightweight and compact due to an integrally molded connector, bobbin and valve seat made of plastic.

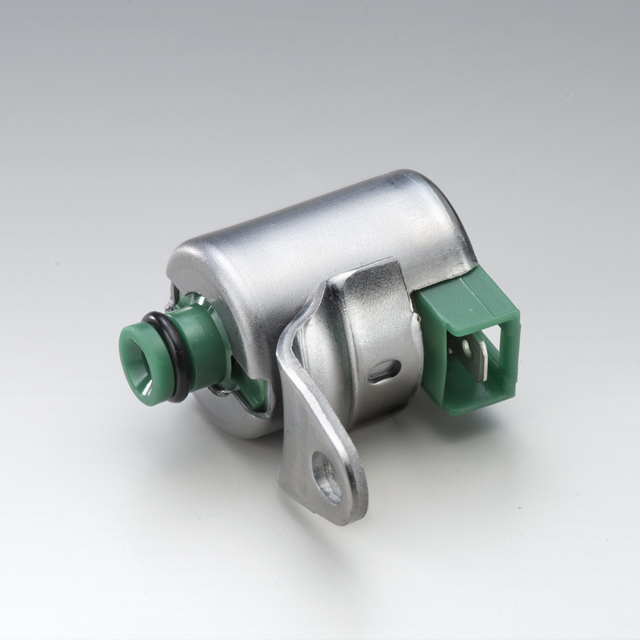

A superb rubber damper used in the valve section reduces operating noise. (Duty-cycle controlled)
Bleed valves offer optimum valve sensitivity and highly stable control pressure by selecting a spool or poppet system according to valve specification requirements. (Linear 2-port valve)

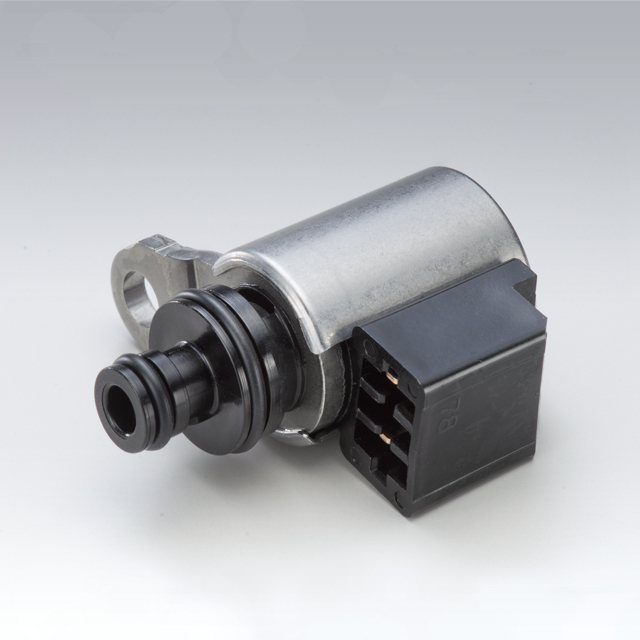

The linear three-way valve performs stable high-pressure control by adopting a spool system and Eagle Industry’s proprietary movable part damping structure. (Linear 3-port valve)
| Voltage | 12 V |
| Temperature | -40 to 150°C |
| Coil resistance |
On-off:14 to 18 Ω Duty-cycle:11 to 13 Ω Linear:4 to 7 Ω |
| Control pressure |
On-off, Duty-cycle(2-port):0.4 to 0.6 MPa Linear(3-port):1 to 2 MPa |
| Flow rate |
2-port (On-off, Duty-cycle, Linear):0.8 L/min (at 0.04 MPa) 3-port (Linear):5 L/min (at 0.7 MPa) |
| Gross weight |
2-port (On-off, Duty-cycle, Linear):80 to 100 g 3-port (Linear):160 g |
| Vibration durability | 100 to 250 m/sˆ2 for 10ˆ7 cycles |
| Thermal shock durability | -40 & 165°C for 50 to 500 cycles |
| High-temperature operation endurance |
On-off:120ºC for 10^6 cycles Duty-cycle:120ºC for 3 ×10^8 cycles Linear:120ºC for 4000 h |
