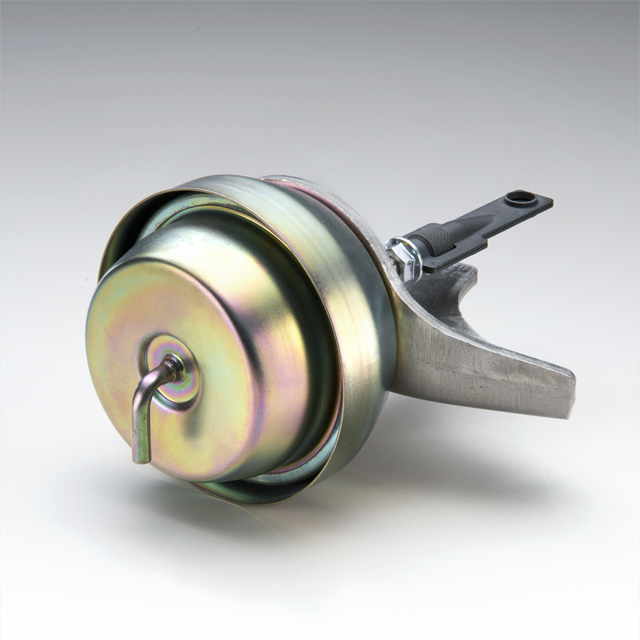

VG Turbocharger Actuator
- Controls the opening/closing of the nozzle for variable geometry turbocharger.
- Controls the nozzle opening angle according to rotation level to improve high torque at low speed, fuel efficiency, and acceleration performance.
Feature
A heat shield plate and bush made of a highly heat-resistant material are used to guarantee better high-temperature operation endurance.
Product Specification Example
|
Pressure
|
-80 kPa min.
|
|
Temperature
|
-40 to 150ºC
|
|
Stroke
|
15 mm max.
|
|
Vibration durability
|
300 m/sˆ2 for 3×10ˆ7 cycles
|
|
Thermal shock durability
|
-40 to 150ºC for 20 cycles
|
|
High-temperature operation endurance
|
150ºC for 10ˆ6 cycles
|
Note:The above figures show some examples. Contact us when you are considering making a purchase.
