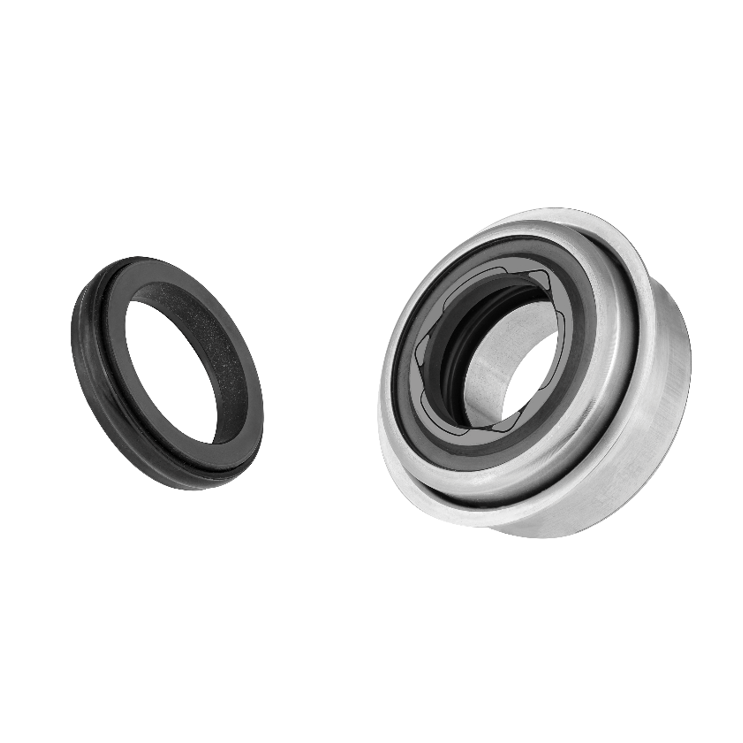

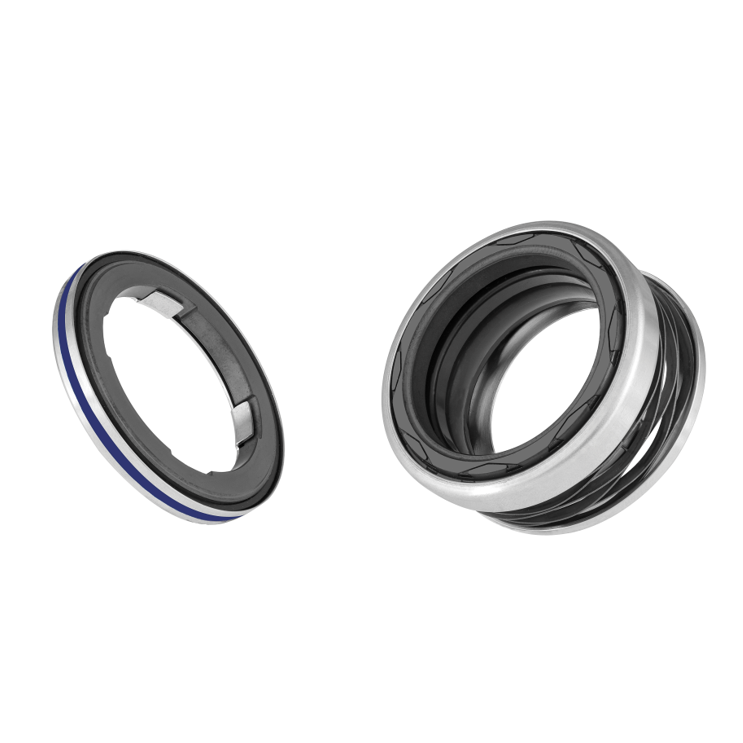

GlideX™-EMS, RGS

for EV Drive Motor/Gearbox

• Extremely low torque and superior sealing performance even with high rotational speeds.
• Suitable for sealing water-based fluids (e.g. coolant) or oils used in EV drive motor, eAxle and reduction gearbox.

Feature

This seal is designed for sealing fluids used in shaft cooling system of EV drive motor and eAxle. Also suitable for reduction gearbox.
The seal’s textured sliding surface provides superior sealing performance together with extremely low torque.
Its non-contact sealing under rotation reduces sliding surface wear and enables high speed capability.
EKK can customize the seal design for optimal performance based on application-specific requirements.

Product Specification Example

Seal Type	GlideX™-EMS	GlideX™-RGS
Sealed Fluid	Coolant	ATF
Maximum Rotational Speed	30,000rpm	25,000rpm
Shaft Diameter	φ22 mm	φ45 mm
Operating Temperature	-40 ℃ ～ 120 ℃	-40℃ ～ 150℃
Fluid Pressure Range	-0.097 MpaG ～ 0.3 MPaG	±0.03 MPaG

Note: Above shows typical conditions, please contact us with your specific requirements.
